Optibeam LED panel Optibeam PURE 506 - 1605-NS2097

Optibeam LED panel Optibeam PURE 506 - 1605-NS2097 is a quality lighting solution designed for reliable performance in everyday use.

Key benefits

• Optibeam PURE 506 LED panel is a quality lighting solution designed for reliable performance in everyday use.
• Key benefits

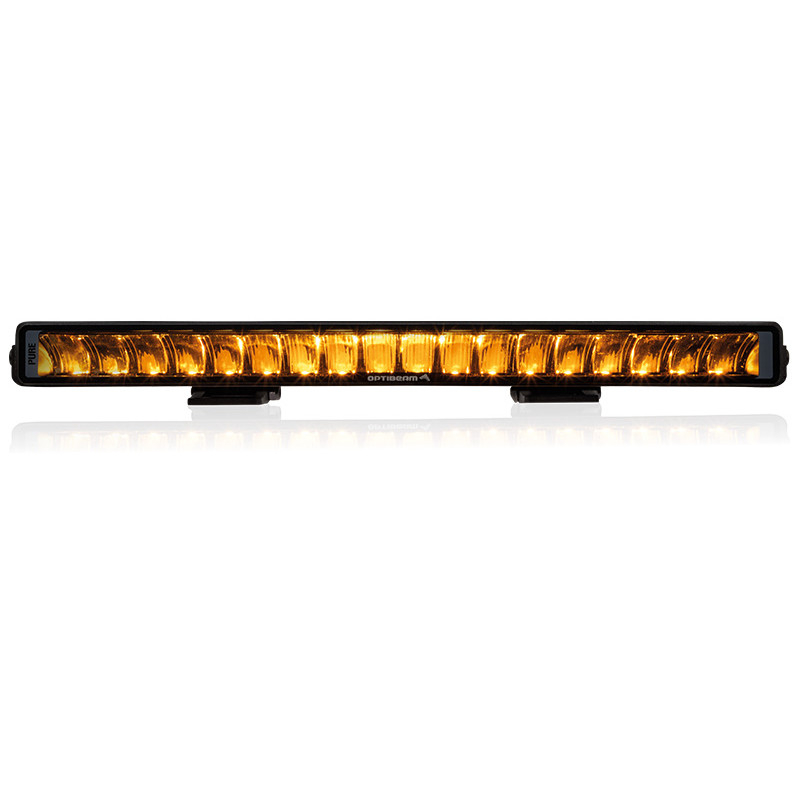

• Optibeam Pure 506 is a revolutionary auxiliary light bar equipped with cutting-edge technology, representing an unprecedented level of investment from Optibeam. The development of the Pure auxiliary light bar involved collaboration with experts from various industries to ensure its versatility for various vehicle types. With an excellent brightness to size ratio, an incredibly wide beam pattern, impressive range and an elegant curved design, this auxiliary light stands out as the brightest innovation of this season. Optibeam has placed particular emphasis on the optical properties of the light and high-quality components, as evidenced by an exceptionally high Color Rendering Index (CRI) value, ensuring natural color reproduction. The additional light bar lens is made of a highly durable polycarbonate compound that is essentially indestructible. Its slim 42 mm profile ensures stylish and discreet mounting even in the most complex vehicles, and its timeless, minimalist design appeals to the most demanding users. The Optibeam Pure 506 auxiliary light has a completely unique one-piece design, designed to ensure maximum cooling of the electronics and protect the light from mechanical shock.
• Model name: PURE 506
• Technical data

Technical data

• Package size: 1/4

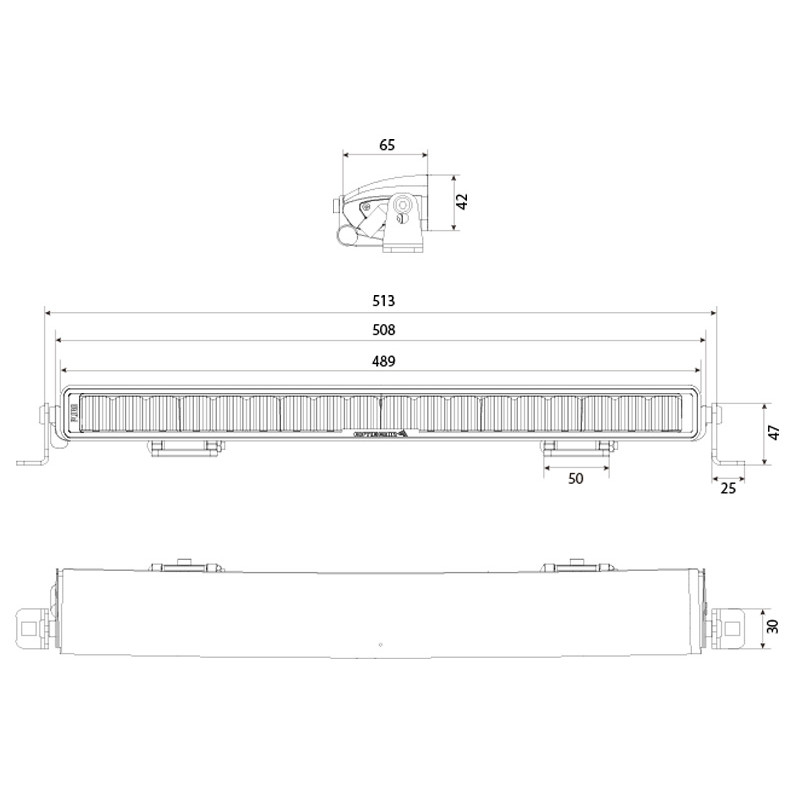

• Dimensions: 508.00 x 42.00 x 65.00 mm
• Weight: 2.00 kg (net 2.00 kg)
• Voltage: 9-48V
• Lumens (measured): 17620 lm
• Reference value: 50
• Shape: panel
• Color temperature: 5000 K
• Plug type: 4-pin DTP
• IP rating: IP68
• Approvals: ECE R148, R149, R10
• Information: Unique one-piece housing, elegant curved design, only 42 mm thick, highly durable polycarbonate lens, ultra-high color rendering index (CRI). Double Up Boost function, 1lux @562m, Two-color parking light. current consumption 21A @ 13.7V
• Warranty (months): 36
