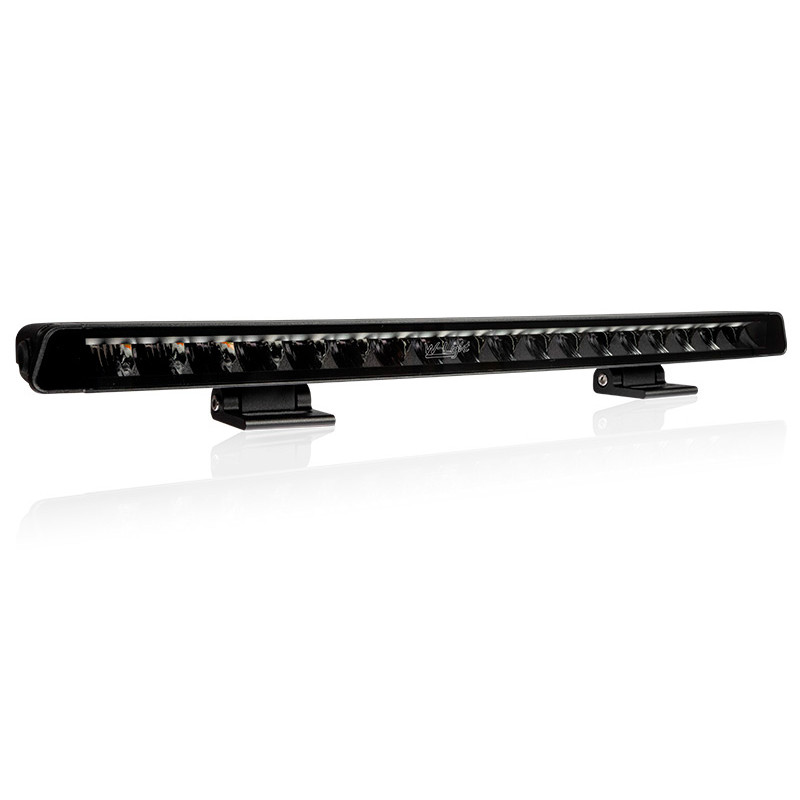

W-Light LED high beam panel X-VISION Surge Super Slim 20 (538 mm) AMT 1605-NS3880

X-VISION Surge Super Slim 20 AMT LED driving light bar – 1605-NS3880

Powerful and ultra-slim LED auxiliary driving light for modern machinery and trucks. Surge Super Slim 20 AMT delivers up to 9200 lm of light output (approx. 8000 lm measured) with a 5000 K daylight-like colour temperature, which is much easier on the eyes than cold bluish light.

The slim housing (only 33 mm high) and bar-shaped design allow the light to be integrated in a truck bumper, passenger car grille or on roof racks of working machinery without blocking air inlets or creating unnecessary wind resistance.

Advantages

• Very powerful LED driving light bar – up to 9200 lm (approx. 8000 lm measured)

• Long beam distance – 1 lux at up to 373 m, in “double up” configuration up to 508 m

• Super Slim design – only 33 mm high, easy to install in tight spaces

• Wide operating voltage range 9–36 V – suitable for both 12 V and 24 V systems

• Neutral 5000 K colour temperature – excellent visibility and reduced glare

• 18 x LEDs with optimised optics for an even light pattern

• 3-pin DT connector and 2.20 m cable – easy and safe connection

• “Double up” option – two light bars together for even greater reach

• No position light – pure driving light bar for professional users

• Manufacturer’s warranty: 24 months

Technical data

• SKU: 1605-NS3880

• Model: Surge Super Slim 20 AMT

• EAN-13: 6438255038808

• Voltage: 9–36 V

• Power consumption: 8.97 A @ 13.7 V

• Luminous flux: 9200 lm (approx. 8000 lm measured)

• Colour temperature: 5000 K

• Shape: bar

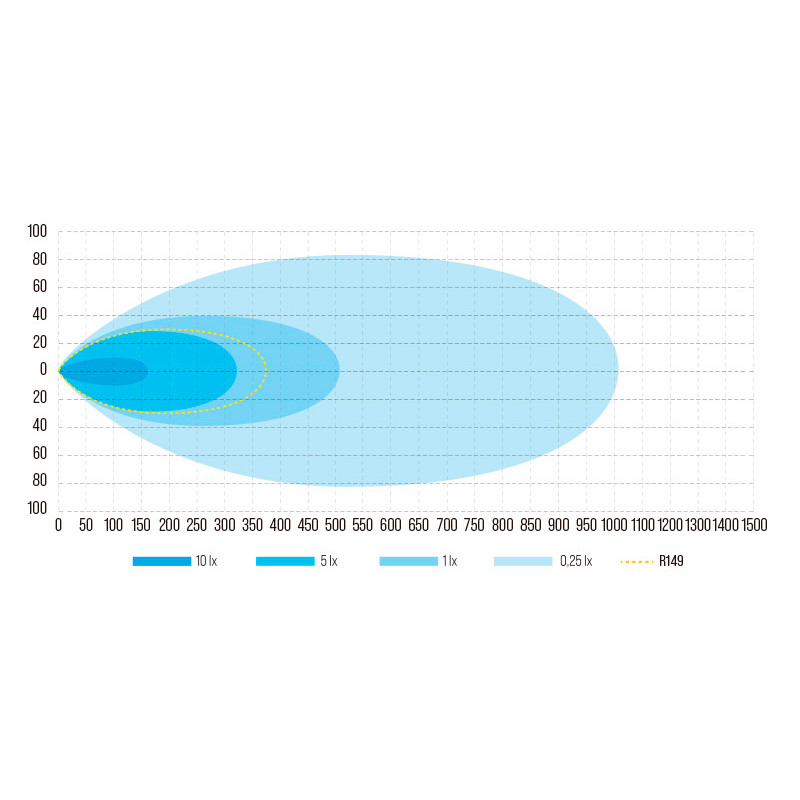

• Beam distance:

  • 1 lux: 373 m

  • “Double up” 1 lux: 508 m

• Number of LEDs: 18

• Connector: 3-pin DT

• Cable length: 2.20 m

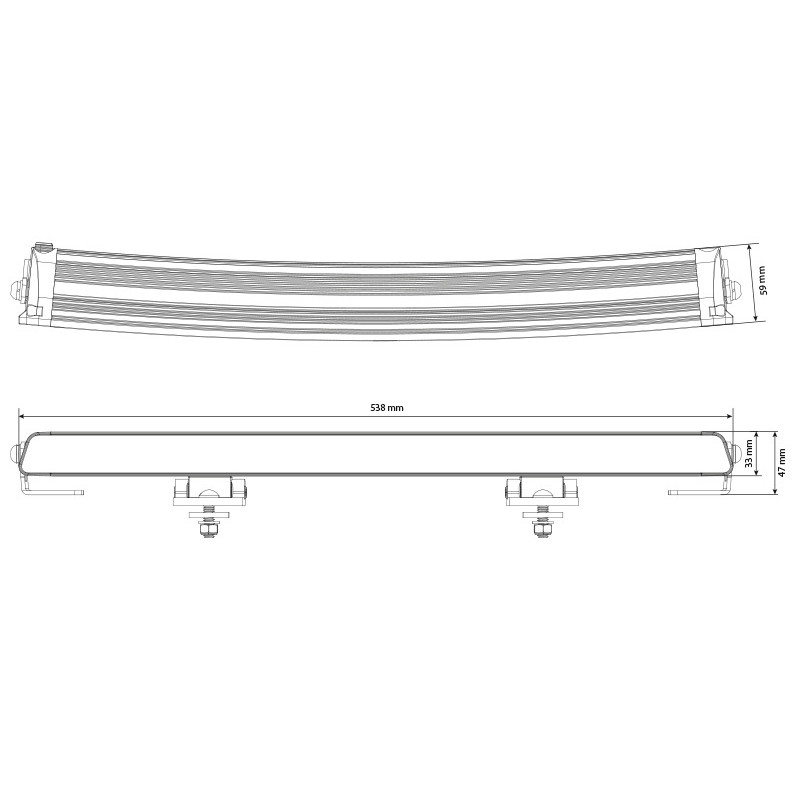

• Dimensions (L × H × D): 538 × 33 × 59 mm

• Weight: 3.0 kg (net)

• Reference value (Ref.): 30

• Approvals: R148, R149, R10

This light bar is an excellent choice when you need maximum visibility, a slim housing and reliable E-approved driving light performance for trucks, pickups or working machinery.
