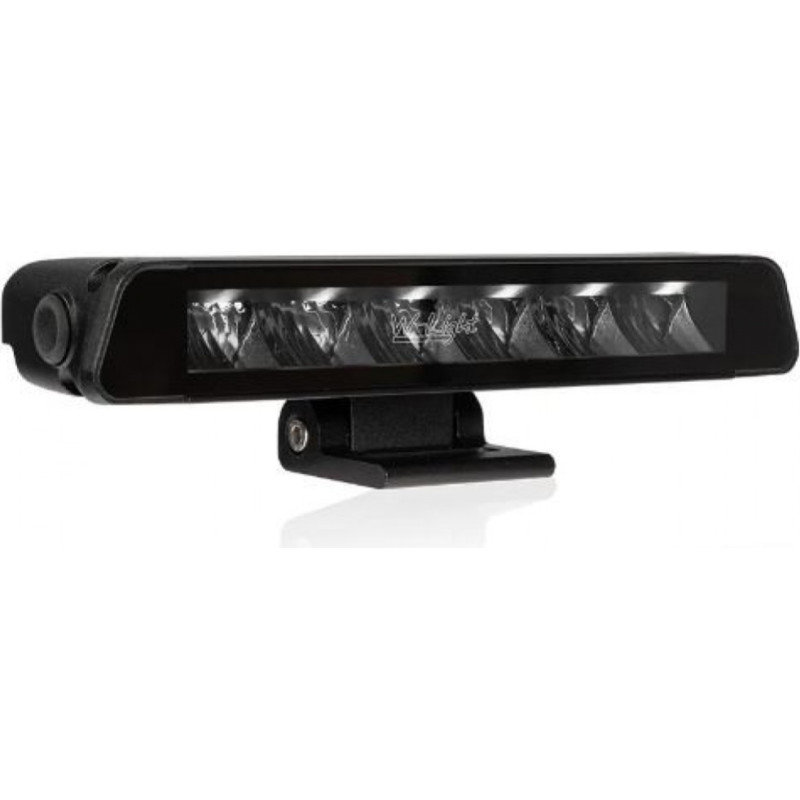

W-Light LED high beam W-LIGHT SURGE SUPER SLIM 8.5 (214 mm) – 1605-NS3876

W-Light LED high beam W-LIGHT SURGE SUPER SLIM 8.5 (214 mm) – 1605-NS3876

The W-Light Surge Super Slim 8.5 is a compact and powerful LED driving light designed for passenger cars, SUVs, pickups and working machinery. The ultra-slim housing (only 33 mm high) and 214 mm length allow clean integration into the bumper, grille or roof bar without spoiling the vehicle’s appearance or aerodynamics.

The light delivers up to 5800 lm (approx. 4300 lm measured) with a 5000 K daylight-like colour temperature, providing excellent visibility and reduced eye fatigue. The integrated white and amber position light lets you match the look to your vehicle’s existing lighting.

Key benefits

• Powerful LED driving light in a compact housing

• Light output up to 5800 lm (approx. 4300 lm measured)

• Beam distance: 1 lux at 340 m

• Neutral 5000 K colour temperature – high contrast and less glare

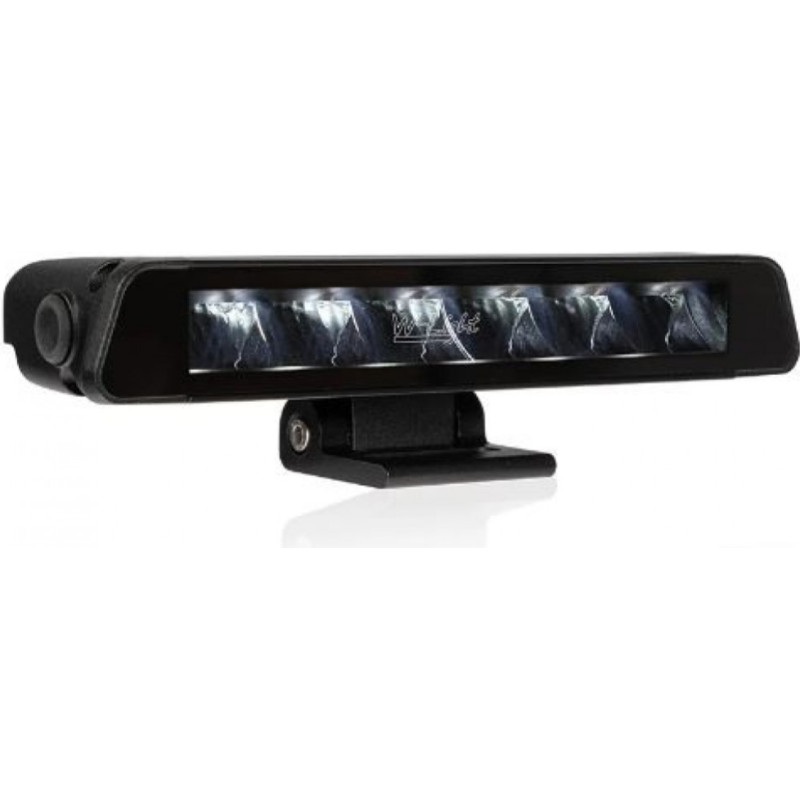

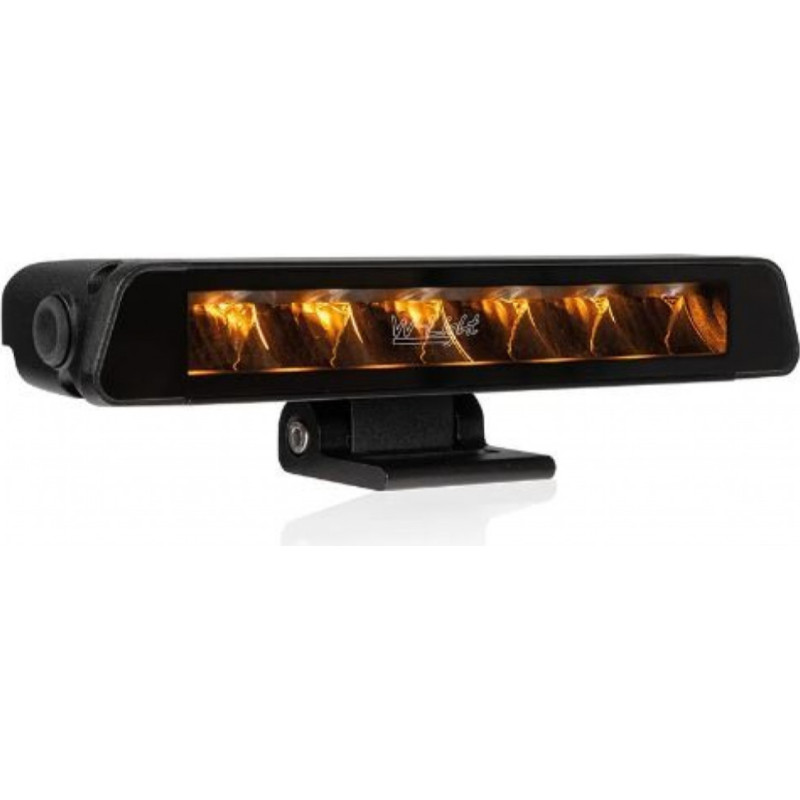

• White and amber position light – two styling options in one lamp

• Wide operating voltage 9–36 V – suitable for 12 V and 24 V systems

• Robust construction: aluminium housing, polycarbonate lens, IP68/69K

• E-approved: R148, R149, R10 – road legal where regulations allow

Technical data

• Model: W-Light SURGE SUPER SLIM 8.5

• SKU: 1605-NS3876

• Dimensions (L × H × D): 214 × 33 (47) × 59 mm

• Weight: 2.0 kg

• Voltage: 9–36 V

• Luminous flux: 5800 lm

• Measured luminous flux: 4300 lm

• Reference value: 12.5

• Colour temperature: 5000 K

• Range: 1 lux at 340 m

• Number of LEDs: 6 pcs

• Position light: white and amber

• Power consumption: 4.08 A @ 13.7 V

• Plug type: 2-pin DT

• Cable length: 2.20 m

• Housing material: aluminium

• Lens material: polycarbonate

• IP rating: IP68 / IP69K

• Approvals: R148, R149, R10
