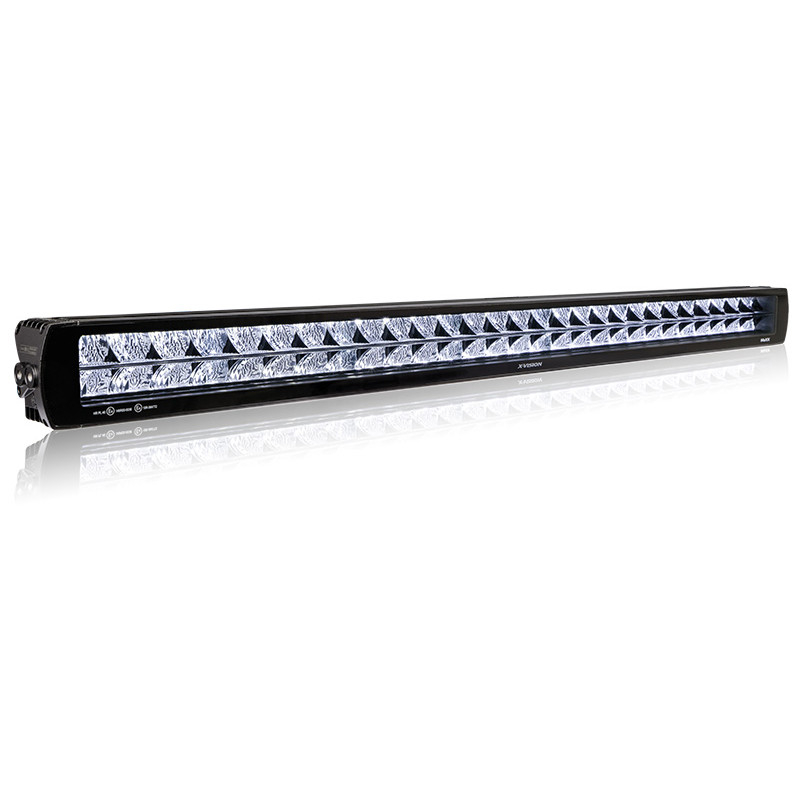

X-Vision LED panel X-Vision Maxx 1100 21000Lm - 1605-NS3753

X-Vision LED panel X-Vision Maxx 1100 21000Lm - 1605-NS3753 is a quality lighting solution designed for reliable work in everyday use.

Main advantages

• X-Vision LED panel Maxx 1100 21000Lm is a quality lighting solution designed for reliable work in everyday use.
• Main advantages
• X-VISION Maxx 1100
• The latest novelty in the X-Vision family stands out with its dual-row lighting technology. Thanks to the large number of LEDs and the optical properties of the luminaire, the X-Vision Maxx gives you a completely new lightning experience. The Maxx auxiliary lights have a dual function, known from previous models. In addition, the Maxx series lights now have an amazing ambient position illumination of street lighting. The new patented solution elevates the light in its appearance to a whole new category and will once again define the future of additional lights.
• Product description:
• Model name: Maxx 1100
• Technical data

Technical data

• Package size: 1/2
• Dimensions: 1114.00 x 83.50 x 84.50 mm
• Weight: 9.46 kg (net 8.50 kg)
• Voltage: 9-36V
• Lumens: 21000 lm
• Lumens (measured): 17940 lm
• Reference value: 40
• Shape: panel
• Color temperature: 5000 K
• Plug type: 4-pin DTP
• Cable length: 2.20 m
• IP rating: IP68
• Approvals: R112, R10
• Information: LEDs: 48 x Osram, clear position light, double, 1lux @759m – 1lux @425m (R112), 16.83A @13.7V
• Warranty (months): 36
