Description

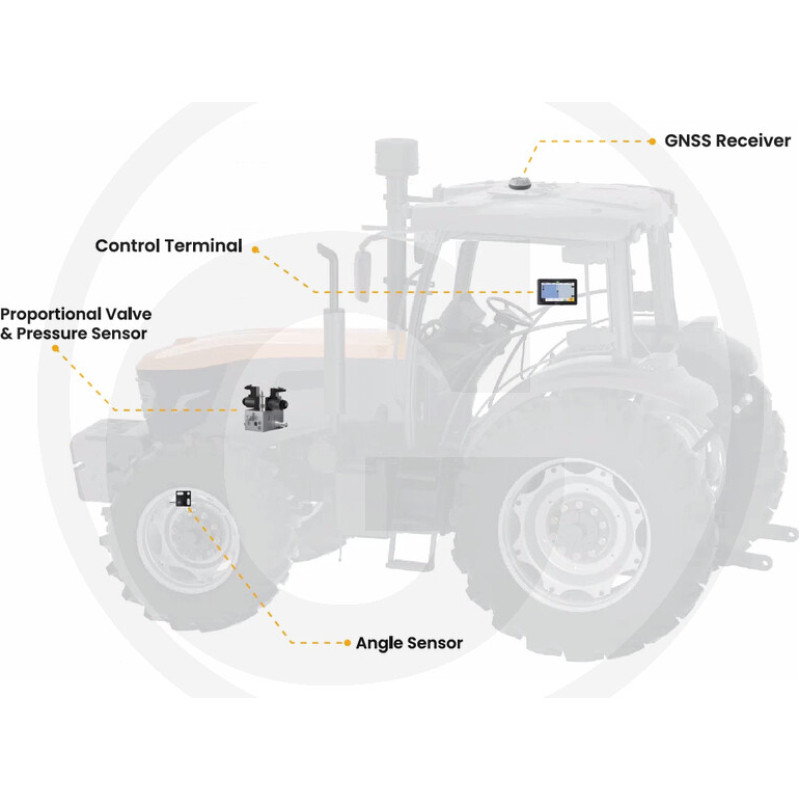

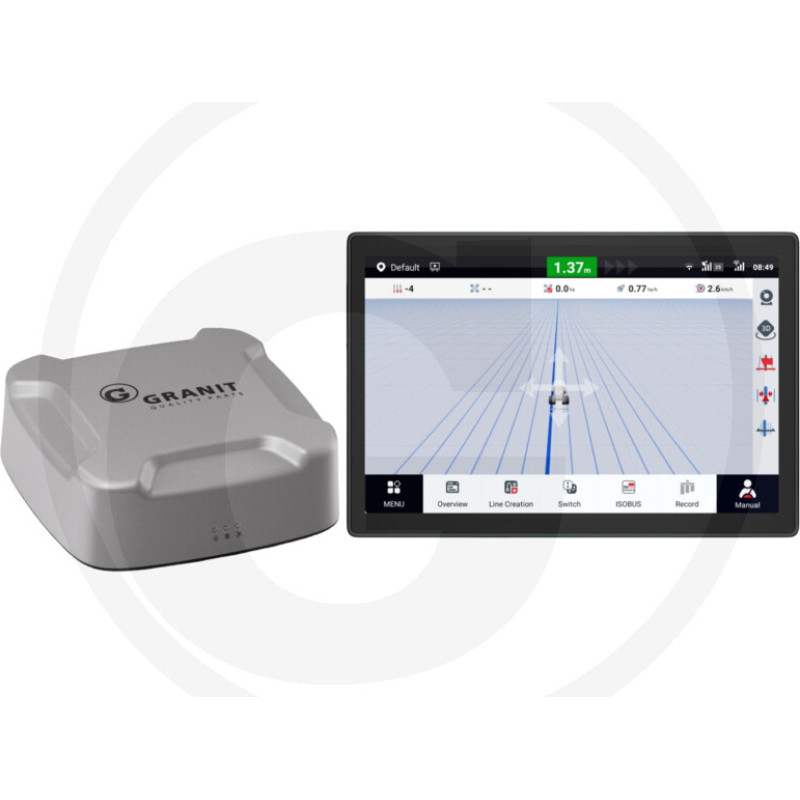

| Hydraulic auto-steering system, which steers through hydraulic control, ensuring stable and precise movement during work. With RTK correction accuracy: 2.5 cm. Included • Control terminal • GNSS receiver • Pressure sensor • Angle sensor • Steering control valve NOT included - must be ordered separately. • Steering valve must be selected according to flow: 30 l/min (article 19348270), 60 l/min (article 19437059). Additional information Hydraulic auto-steering kit - steering is carried out through hydraulic control. Compatible with FJDynamics components and accessories. Power supply: 9-36V. Communications: 4G, 3G, 2G. Protection class: IP65. Operating temperature: -40°C - +85°C. GNSS receiver protection: IP66. Display/Terminal Terminal: 12.1" touchscreen. Accuracy ≤ 2.5 cm (RTK) Description Hydraulic autosteering system that performs steering through hydraulic control, ensuring stable and precise movement during work. With RTK correction, accuracy: 2.5 cm. **In the kit:** • Control terminal • GNSS receiver • Pressure sensor • Angle sensor • The kit does NOT include a steering control valve - must be ordered separately. • The steering valve must be selected according to the flow: 30 l/min (article 19348270), 60 l/min (article 19437059). **Technical information:** • Terminal: 12.1" touchscreen. • Accuracy (RTK): 2.5 cm (RTK) • Optional: Hydraulic auto steering kit — steering is done through hydraulic control. Compatible with FJDynamics components and accessories. Power supply: 9-36V. Communications: 4G, 3G, 2G. Protection class: IP65. Operating temperature: -40°C - +85°C. GNSS receiver protection: IP66. **Note:** If you are not sure about compatibility (cables/mounts, hydraulic flow, etc.), write to us — we will help you find the right kit. |
Granit Auto Steering GAD-H RTK 2.5cm Hydraulic with 60L Valve
Product Code: 36635298
2-3 Days
7,676.24€
Granit Auto Steering GAD-H RTK 2.5cm Hydraulic, with 30L valve
Product Code: 19410220
2-3 Days
7,665.23€
Granit Automatic steering GAD-H, RTK 2.5cm Hydraulic, without valve
Product Code: 36669587
2-3 Days
5,541.68€
